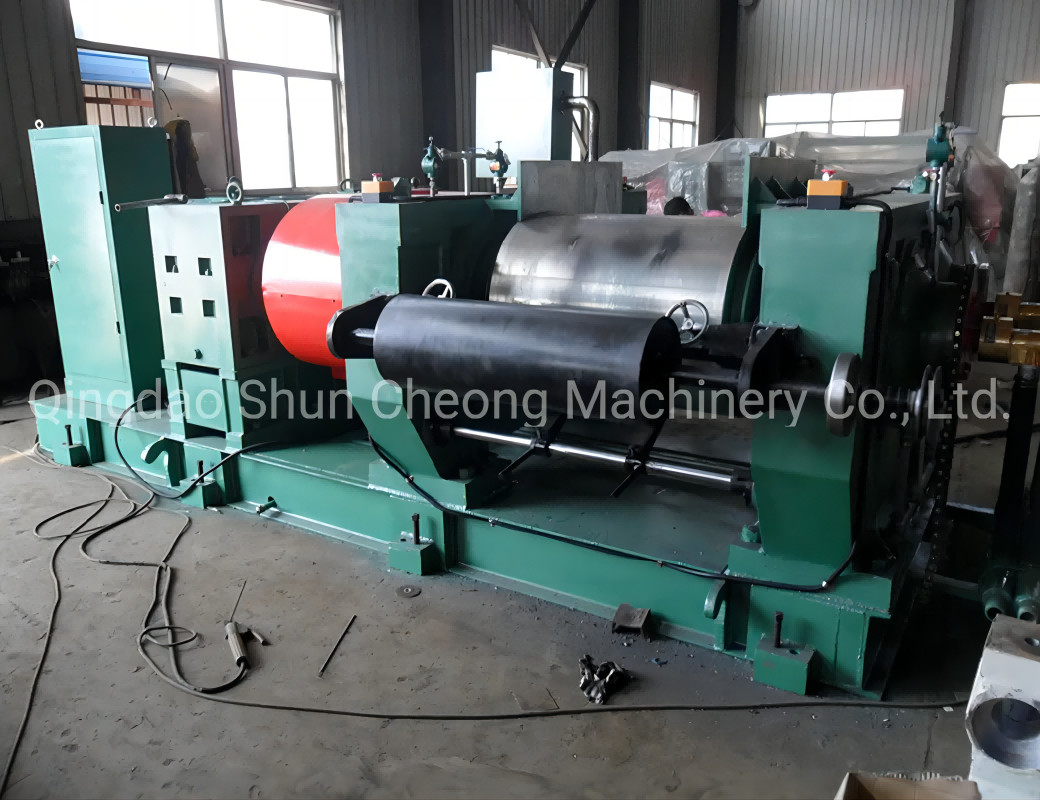

XKJ-480 Reclaimed Rubber Machine , Rubber Refining Mill 500 Kg Per Hour

Brand Name : SFC

Model Number : X(S)55*30

Certification : CE、ISO、SGS

Place of Origin : China

MOQ : 1

Price : USD:$8000(1-3);$7000(>3)

Payment Terms : L/C, T/T

Supply Ability : 500sets/year

Delivery Time : 1 - 3(sets)40(days);>3(sets) To be negotiated

Packaging Details : Safety wood or plywood crates packaging.

Control System : PLC

Heating Method : Electric/Steam/Oil

Material : Carbon Steel/Stainless Steel

Operation Mode : Manual/Semi-automatic/Automatic

Power : 2.2-75KW

Size : 480*610*1200

Temperature Range : 0-400℃

Voltage : 220V/380V/440V

Warranty : 1 Year

Weight : About 20000kg

Contact Now

XKJ-480 Reclaimed Rubber Machine , Rubber Refining Mill 500 Kg Per Hour

Frank Zhang

Business Manager

sales-8@sfcjx.com

XKJ-480 Reclaimed Rubber Machine , Rubber Refining Mill 500 Kg Per Hour

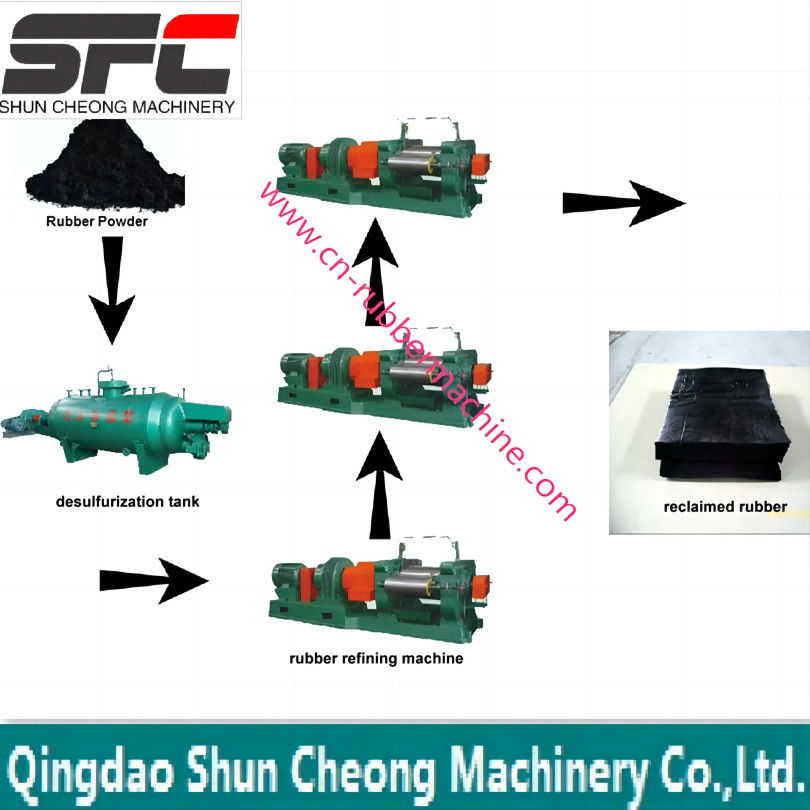

Mainly used for crushing and grinding waste rubber and raw rubber
Features: The roller material is made of alloy chilled cast iron or cast steel and is integrally cast. The surface is hard and wear-resistant. The rear roller is a grooved roller and the front roller is a smooth roller. The inner cavity is processed and the temperature of the roller surface is uniform. The machine is equipped with an overload protection device to protect the main components from damage due to overload. The machine is equipped with safety reverse braking. When an emergency occurs, press the button switch and the machine will brake immediately, which is safe and reliable. The machine adopts an integral base, which is easy to install and maintain.

The technical parameters for some models Reclaimed Rubber Machine:

Product Model	XKJ-400	XKJ-450	XKJ-480
working Diameter of rollers (mm)	Ф400 Front roller Ф480 Rear roller	Ф450 Front roller Ф510 Rear roller	Ф480 Front roller Ф610 Rear roller
Roller casting process	Centrifugal complex casting	Centrifugal complex casting	Centrifugal complex casting
Roller cooling mode	Around the borehole cooling	Around the borehole cooling	Around the borehole cooling
Roller surface material	High nickel-chromium molybdenum alloy	High nickel-chromium molybdenum alloy	High nickel-chromium molybdenum alloy
Working length of rollers (mm)	650	800/1000	800/1000/1200
Rear roller linear speed (m/min)	32.94(optional)	49/55.2/63.4(optional)	57.5-75.1(optional)
Front and rear roller speed ratio	1.27~1.815(optional)	1.38~1.82/2(optional)	1.27~1.815(optional)
Production capacity (kg/h)	300	360	500-800
Motor power (kw)	55	55	75/90
Roll distance adjustable range (mm)	0.1-15	0.1-15	0.1-15
Reducer	Hardened ZSY	Hardened ZSY	Hardened ZSY
Bearing type	Double aligning roller bearing	Double aligning roller bearing	Double aligning roller bearing
*Overrall size LWH (mm)*	475023001835	406022001470	507028001978
Weight (kg)	About 10500	About 12800	About 20000
