XQL-80 Rubber Cutting Machine Single Knife Rubber Block Cutter Customized

Brand Name : SFC

Model Number : XQL-80

Certification : CE、ISO、SGS

Place of Origin : China

MOQ : 1

Price : USD:$8000(1-3);$7000(>3)

Payment Terms : L/C, T/T

Supply Ability : 500sets/year

Delivery Time : 1 - 3(sets)40(days);>3(sets) To be negotiated

Packaging Details : Safety wood or plywood crates packaging.

Control System : PLC

Heating Method : Electric/Steam/Oil

Material : Carbon Steel/Stainless Steel

Operation Mode : Manual/Semi-automatic/Automatic

Power : 5.5-7.5KW

Size : Customized

Voltage : 220V/380V/440V

Warranty : 1 Year

Weight : Customized

Contact Now

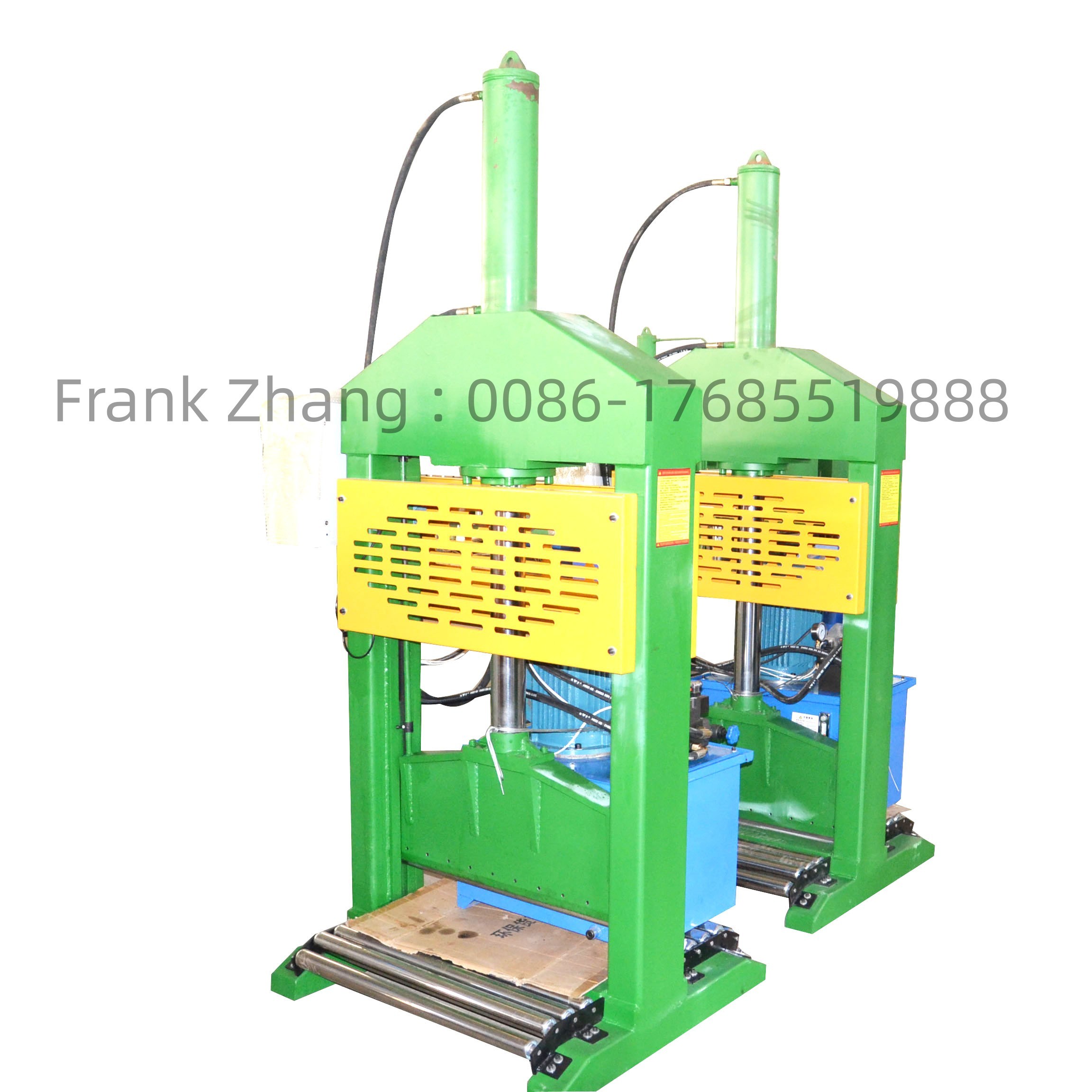

XQL-80 Rubber Cutting Machine Single Knife Rubber Block Cutter

XQL-80 Rubber Cutting Machine Single Knife Rubber Block Cutter Customized

Frank Zhang

Business Manager

sales-8@sfcjx.com

This vertical single-knife rubber cutting machine is mainly suitable for cutting natural rubber, synthetic rubber and other plastic materials. It is especially suitable for installation close to the internal mixer for cutting small pieces of rubber.
The glue cutting machine mainly includes a glue cutting knife, a frame, a working cylinder, a base, an auxiliary workbench and a hydraulic system. It consists of electrical system and other parts, and a nylon pad is installed on the base under the rubber cutting knife to protect the blade of the rubber cutting knife. When cutting raw rubber, manually place the rubber material under the rubber cutting knife, and then press the start button. The rubber cutting knife will be driven by the piston rod and fall along the slide on the frame to cut the rubber material. The frame is equipped with two upper and lower limit switches to control the reversing valve to change the movement direction of the rubber cutting knife. At the same time, it can also protect the piston cylinder head.

The technical parameters for some models Rubber Cutting Machine :

Product Model	XQL-80	XQL-160
Motor power (kw)	5.5	7.5
Rated cut-off force(kn)	80	160
Cutting width (mm)	690	790
Cuting stroke(mm)	680	700
Wroking oil pressure (mpa)	8	5
Weight (kg)	~1000	~1200
*Oberall size LWH*	*200010002500*	*250010002500*

XQL-80 Rubber Cutting Machine Single Knife Rubber Block Cutter Customized

XQL-80 Rubber Cutting Machine Single Knife Rubber Block Cutter Customized Images
