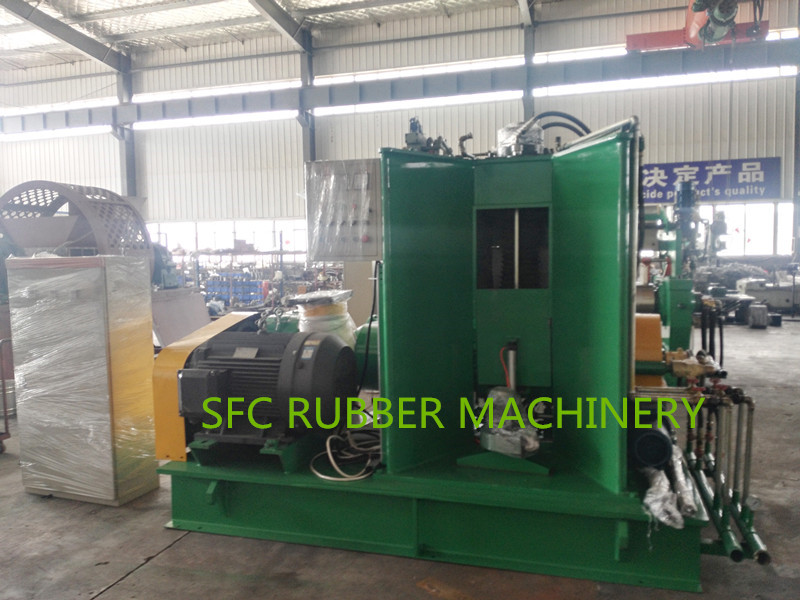

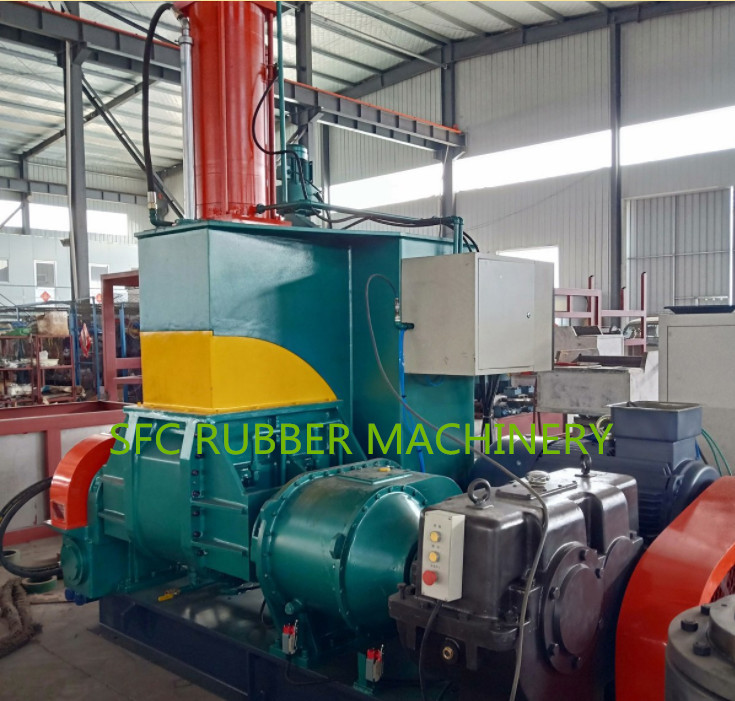

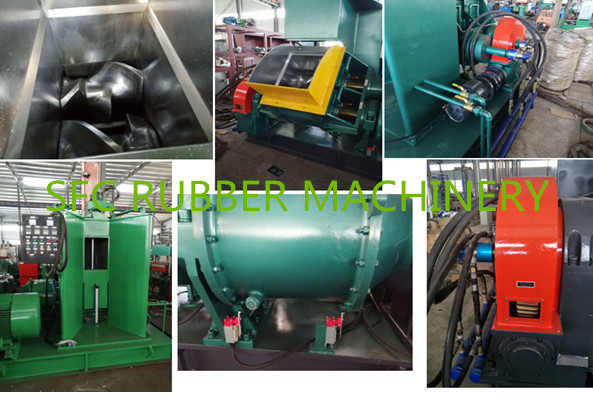

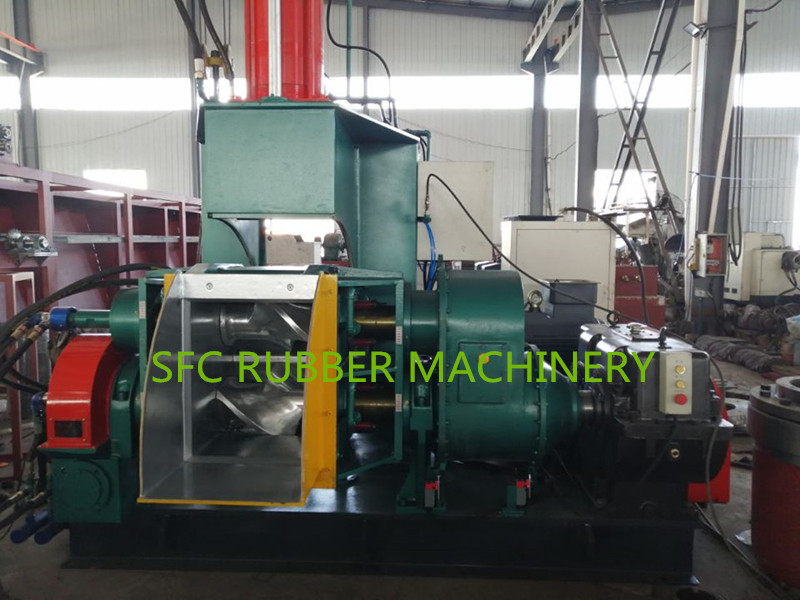

PLC Control Dispersion Rubber Kneader Machine for 35L , 55L , 75L , 110L
Usage:
The machine is applicable for plasticating and mixing rubber and plastics,and also applicable for mixing or kneading sticky materials.
Character:
1.Disperation Rubber/EVA/ Kneader/Silicon Machine
2.OEM Manufacturer ,keeping quality.
3.Supplying technical support
4.CE/ISO/SGS certificate
5.Guarantee one years
6.More than 20 years experience of making machinery
7.Sell to 113 countries on 6 continents.
Features:
1. The Rubber Kneader machine is mainly used for plasticizing and mixing of natural rubber, synthetic rubber, reclaimed rubber and plastics, foaming plastics, and used in mixing of various the degree materials.
2. The rotor adopts rolling bearing for support, so the maintenance work is convenient and the service life is long.
3. The transmission device adopts hard tooth reducer, which has compact structure, low noise and high efficiency. It furnished with reasonable designing, construction tightly packed, occupying small area, installing convenience, highly efficiency of production, operation simply.
4. The mchine is the advanced new type mixer equipment of rubber and plastics industry, various features are so advanced as the same product of foreign. For seal designing, we get excellent result in sealing and everlasting.
Rubber Kneader Machine Parameter:
| Model | X(S)N- 3x32 | X(S)N- 5x32 | X(S)N- 10x32 | X(S)N- 20x32 | X(S)N- 25x32 | X(S)N- 35x30 | X(S)N- 55x30 | X(S)N- 75x30 | X(S)N- 110x30 | X(S)N- 150x30 | X(S)N- 200x30 |
| Total Volume Of Mixing Chamber(L) | 8 | 15 | 25 | 45 | 55 | 75 | 125 | 170 | 250 | 325 | 440 |
| Working Volume Of Mixing Chamer(L) | 3 | 5 | 10 | 20 | 25 | 35 | 55 | 75 | 110 | 150 | 200 |
| Driving Motor Power(KW) | 5.5 | 11 | 22 | 37 | 37 | 55 | 75 | 110 | 185 | 220 | 280 |
| Tilting Motor Power(KW) | 0.55 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | 4 | 5.5 | 11 | 11 |
| Tilting Angle(°) | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 135 | 135 |
| Rotating Speed of Rotor(Front/Rear) (r/min) | 32/24.5 | 32/23.5 | 32/25 | 32/27 | 32/24.5 | 30/24.5 | 32/24.5 | 32/24.5 | 32/24.5 | 30/24.5 | 30/24.5 |
| Pressure of Cooling Water(MPA) | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
| Overall Dimension (LxWxH)(mm) | 2000x 1000x 2220 | 1850x 1200x 2280 | 2450x 1650x 2350 | 2675x 1650x 2560 | 2675x 1650x 2560 | 3200x 1900x 2950 | 3230x 1927x 2958 | 3325x 2615x 3105 | 4075x 2712x 3580 | 4250x 2750x 4106 | 4250x 3400x 4215 |
| Gross Weight(T) | ~2 | ~2.1 | ~2.1 | ~4 | ~4.5 | ~6.3 | ~7.1 | ~9.5 | ~14.9 | ~19.5 | ~22.5 |
Our Services:
♦ Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
♦ In the process of production, we will take photos and send to customers for their track the progress.

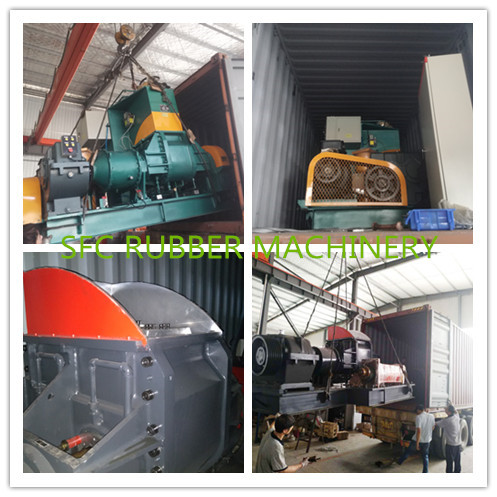

♦ Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
♦ We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
♦ We supply overseas engineer service and help to train your workers to operate the machine.
Welcome your inquiry!
